Portable piezo pickup for violin and viola.

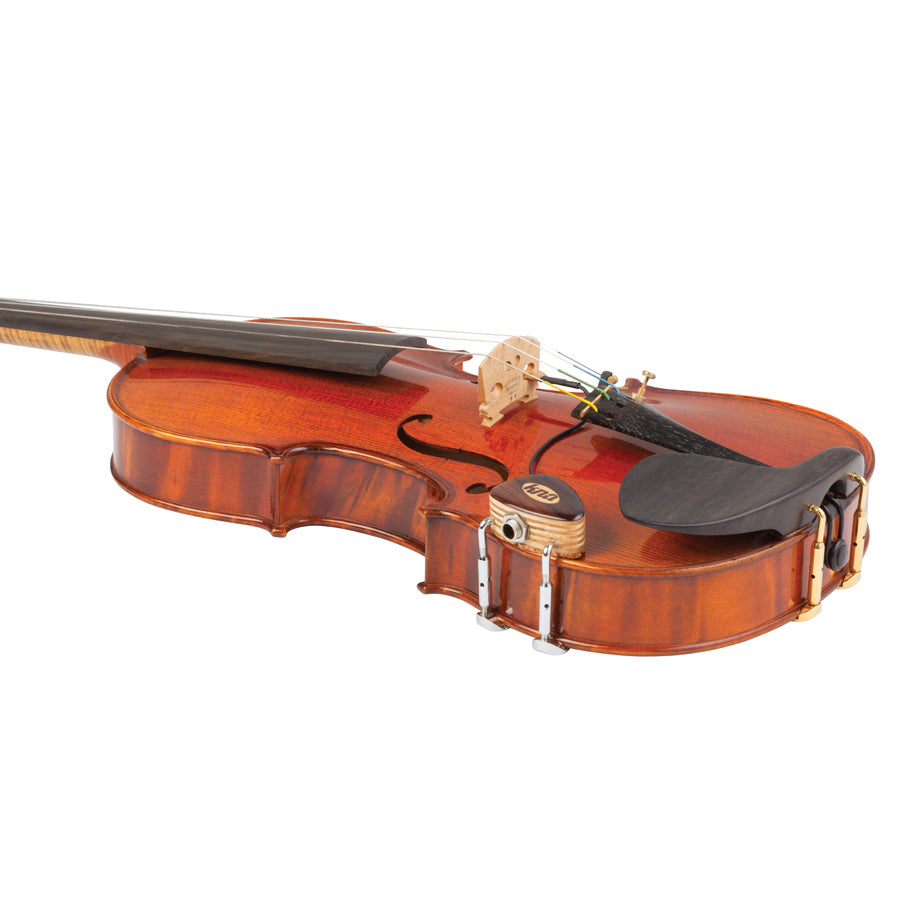

VV-1 is the best choice for musicians craving the natural sound of their viol without a lot of setup. A wood-encased piezo sensor installs safely and securely into the eye of the instrument bridge with minimal modification. A 1/4" jack socket mounts to the viol bout with a cork-lined clamp. Clamp barrels are easily adjustable to precisely accommodate the nuanced build variances of both violins and violas. VV-1 employs a passive system, designed to work flawlessly with your favorite acoustic amplifier or colored via your preamp of preference.
| specifications | |
| Overall weight | 28gr / 1 oz |
| Jack housing material | Laminate birch and walnut top |
| Lead cable from jack housing to element | 13cm / 5.10" |
| Diameter of the piezo element | 11.8mm / 0.46" |
| Thickness of the piezo element | 1.8mm +/- 0.10mm 0.07" +/- 0.003" |
| Maximum Impedance | 1500 ã_ |
| Clamps adjustability (min & max) | 32mm to 42mm 1.25" to 1.65" |
| Clamps adjustability (min & max) with viola barrels (provided) | 36mm to 49mm 1.41" to 1.93" |
